How to Connect Batteries in a Series

I’m tinkering with some DC motors, and have been able to drive them with a 1.2A wall wart that produces a variable 3-12v. I want to drive the motors with 24v+. Would I be able to get what I need by soldering together 16 AA batteries in series? Or would internal resistance foil my plans?

Would it be better to hook up three 9v batteries in series?

Some more details: I’m working towards building an autonomous quadcopter with an arduino for the controller and misc surplus parts. At this point I’m just seeing if I can push enough voltage thru the four small motors I’ve got to even get them to lift their own weight. I found the motors for $1.50 each at a local surplus store. I’m willing to throw $2 of AA at a one-shot feasability test before spending real money on li-po and/or ESC or other ‘real’ kit.

1.5V when new but rapidly droop to say 1.3V each then fall to about 1V when flat. | . $endgroup$ – Russell McMahon ♦ Dec 28 ’13 at 19:49

3 Answers 3

Would I be able to get what I need by soldering together 16 AA batteries in series? Or would internal resistance foil my plans?

Probably it would at least make your goal difficult, if we assume alkaline batteries. Let’s take some numbers from an Energizer application note, which says that the series resistance for a AA might be around 200mΩ. This value will increase as the battery is drained, and also depends on temperature and frequency, so see the application note for all the details.

If we use that 200mΩ number, then with 16 batteries in series, the total series resistance of the batteries is

$$ 200mathrm mOmega cdot 16 = 3.2 Omega $$

If you were to draw 1A from this, the voltage drop across the battery’s internal resistance would be (by Ohm’s law):

$$ 1mathrm A cdot 3.2Omega = 3.2 mathrm V $$

Assuming a nominal 1.5V across each cell, the output voltage won’t be 24V as you’d expect, it will be:

$$ 24mathrm V – 3.2 mathrm V = 20.8 mathrm V $$

While this might work for a short while (pretty soon the batteries will drain, and the internal resistance will rise), it’s not terribly efficient. The power lost in the batteries, through their internal resistance is:

$$ 3.2 mathrm V cdot 1 mathrm A = 3.2 mathrm W $$

The power delivered to the load (your motor) is:

$$ 20.8 mathrm V cdot 1 mathrm A = 20.8 mathrm W $$

The efficiency is thus:

And again remember, these are for fresh batteries. It gets far worse as the batteries discharge, even before they are dead.

While 87% efficiency might work, it won’t work well. You are making a thing designed to fly. Flight is a lot of work, and an inefficient system means you have to carry more battery weight. The problem is compounding, because more weight means you also need more thrust, which requires more energy, thus more weight. While you can in theory make it fly, it might end up being pretty huge.

Would it be better to hook up three 9v batteries in series?

Probably not. 9V batteries achieve their high voltage in a small package by containing internally several cells in series. Knowing that an alkaline cell (any kind, AA, A, C, D. ) has a voltage of about 1.5V, we can infer that a 9V battery is 9V/1.5V = 6 alkaline cells in series. However, each of these cells is much smaller than a AA, and each will have a higher internal resistance.

In order to decrease the internal resistance, you could do a couple things. The first would be to wire batteries in parallel. Two AA cells in parallel have the same voltage, but twice the stored energy, and half the effective resistance as one AA cell. So, you could make 16 pairs of parallel AA cells, then wire those 16 pairs in series. However, this arrangement also has twice the weight, which is really not good in your situation (flight).

The better solution would be to use a different battery chemistry. Alkaline batteries are good because they are cheap, and that’s about it. In terms of internal resistance, they are poor. They also have not great energy density, meaning per unit of weight, they contain less energy than you could have for the same weight of some other chemistry of battery. Again, low energy density is really bad for your situation.

Among the other chemistries you might consider are:

With lithium polymer batteries and chargers being widely available from RC hobby suppliers, and their superb energy density, I’d recommend them first for your situation.

When you wire batteries in a parallel connection, the power remains same, but the capacity increases. So if you took two batteries both 6V (Volt) and 10AH (Ampere-Hour) and wired them in Parallel you will have 6V and 20AH. In simpler words, batteries connected in parallel provide the same power for longer duration.

This kind of parallel wired batteries are used to jump start the car, scooters and it can also be used for laptops and UPS backups. The process of connecting two batteries to be used in a single application is generally known as battery bank.

In order to wire batteries in parallel, connect positive terminal with the positive and negative terminal with negative of both the batteries with a set of cables. You then connect the load with one of the batteries, but both will drain equally.

Both the batteries which are to be wired in parallel must be of same types whether it is lead acid or lithium-ion. Different types of batteries should not be wired together as they could explode. It is also important to note that in parallel connection amperage of the batteries increases, therefore high duty cable should be used to avoid the cables burning out.

When wiring batteries in parallel, try to match the capacities as much as possible to avoid discharging one battery quicker than another. Also age of the batteries should be same, adding new batteries to old will result in old ones pulling the new ones down.

Introduction: How to Wire Batteries in Series (or in Parallel)

Get the power you need from the power you have by wiring together different power sources to get the voltage or the current to drive your project.

This is a simple insructable which will graphically demonstrate how to wire multiple power sources together to get the voltage and current you need for your project.

You will see that this demo uses a couple of my Al/Air fuel cells but you should be able to use any power sources you like.

It is not required that all the power sources be the same and this can affect your output. For instance wiring 3V and 9V batteries in series will give you 12V

Step 1: Bill of Materials

Okay you’re going to need some batteries to wire together and some way to wire them together.

In this example we will be wiring together two aluminum air batteries so we’ll need a couple of batteries and some leads for interconnecting them.

A multimeter for measuring voltage and current also comes in handy.

Other power sources that can be used include battery packs, wall warts ( two 9V warts = 1 18V ) or just about anything else.

Step 2: Wiring Two Batteries in Series

Wiring multiple power sources in series will increase the available voltage.

First we measure the voltage from each battery. Then we wire them in series by connecting the negative lead (connected to aluminum foil) to the positive lead of the other battery.

Here we can see that two batteries, one with 850 mV and one with 774 mV produce 1.568 when wired in series. As you can see we lose a tiny bit of power in this circuit ( approximately .05 mV ) most likely due to the nature of the connections.

Now let’s take a look and see what happens when we wire them in parallel.

Step 3: Wiring Two Batteries in Parallel

Now we’ll take a look at what happens when we wire batteries in parallel.

Unlike wiring batteries in series when batteries are wired in parallel the voltage does not increase, the output voltage is the average voltage of all batteries in the circuit. For example if a 3V and a 9V battery were wired in parallel the output voltage would be 6V ( 9+3 divided by 2 ) however the current will be total amperage of all batteries in the circuit (minus any losses).

In this case we can see that 89.6 muA and 70.6 muA produced a collective current of 138.4 muA or about 21.6 muA below our expect 160 muA. This is accounted for by losses in the circuit.

Step 4: More Power – Series Wired in Parallel for Maximum Duration

This is how multiple power supplies can be wired together into a series that provide more voltages, these series be wired in series to provide a sustained and reliable power source. This configuration will produce the most sustained power.

Step 5: Maximum Power – Wired in Series and Parallel for Maximum Power

Absolutely the fastest way to drain your batteries in the shortest possible time.

This configuration shows the batteries wired together using both serial and parallel connections. This will maximize the voltage and the current.

Be the First to Share

Did you make this project? Share it with us!

Recommendations

Plastic Contest

Battery Powered Contest

Hand Tools Only Challenge

28 Discussions

Question 1 year ago

Is there a mistake in the diagram for Step 4 relating to the polarity of the cell in the bottom right hand corner? It has + wired to + of the cell above it and it has an unwired – terminal. It also doesn’t follow the pattern of alternating +/- left/right that is established elsewhere (which seems to support the idea that it may have been drawn backwards and then miswired).

What is a bank of batteries? No, it’s not some kind of financial battery establishment. A battery bank is the result of joining two or more batteries together for a single application. What does this accomplish? Well, by connecting batteries, you can increase the voltage, amperage, or both. Finally an illustrated description of what it means to connect batteries in series or parallel.

We frequently get asked the question, “How am I supposed to connect my battery if I want to double the capacity but not the voltage?”, or similar questions. It can be confusing if you’ve never done it, but hopefully this’ll make it simpler. Be sure to read the important notes at the bottom to protect yourself from damaging any equipment!

Connecting in Series

The first thing you need to know is that there are two primary ways to successfully connect two or more batteries: The first is via a series and the second is called parallel. Let’s start with the series method.A series connection adds the voltage of the two batteries, but it keeps the same amperage rating (also known as Amp Hours). When connecting your batteries in Series you are doubling the voltage while maintaining the same capacity rating (amp hours).Just use a jumper wire between the negative of the first battery and the positive of the second battery. Run your negative wire off of the open connector from the first battery and your positive off of the open connector on your second battery.

For example, these two 6-volt batteries joined in series now produce 12 volts, but they still have a total capacity of 10 amps.

To connect batteries in a series, use jumper wire to connect the negative terminal of the first battery to the positive terminal of the second battery. Use another set of cables to connect the open positive and negative terminals to your application.

Note: Never cross the remaining open positive and open negative terminals with each other, as this will short circuit the batteries and cause damage or injury.

Be sure the batteries you’re connecting have the same voltage and capacity rating. Otherwise, you may end up with charging problems, and shortened battery life.

Connecting in Parallel

The other type of connection is parallel. Parallel connections will increase your current rating, but the voltage will stay the same. In the “Parallel” diagram, we’re back to 6 volts, but the amps increase to 20 AH. It’s important to note that because the amperage of the batteries increased, you may need a heavier-duty cable to keep the cables from burning out.

When connecting in Parallel you are doubling the capacity (amp hours) of the battery while maintaining the voltage of one of the individual batteries. This would be used in applications such as laptop batteries, some scooters, some ups backups, etc. Use a jumper wire between the positives of both batteries and another jumper wire between the negatives of both batteries. Connect your positive and negative wires to the same battery to run to your application.

To join batteries in parallel, use a jumper wire to connect both the positive terminals, and another jumper wire to connect both the negative terminals of both batteries to each other. Negative to negative and positive to positive. You CAN connect your load to ONE of the batteries, and it will drain both equally. However, the preferred method for keeping the batteries equalized is to connect to the positive at one end of the battery pack, and the negative at the other end of the pack.

Important notes: When connecting batteries in a pack there are some important things to keep in mind – – Find out the requirements of your application. For example: Don’t double the capacity on your Power Wheels vehicle if you’re not supposed to…you could burn up the engine. Follow the recommended guidelines for your application. – Don’t use two different chemistries when connecting a pack. Usually the voltages will be different, but more importantly the charge rates will be different and the capacities may be different, thus resulting in a shortened life span. – Try to match capacities as much as possible. When connecting batteries in a pack you should try to match the capacities as much as possible to avoid discharging one battery quicker than another. A pack operates at a combined voltage so your one cell that discharges quicker will likely discharge deeper than it may be able to recover from.

Connecting in Series and Parallel

Batteries equalized is to connect to the positive at one end of the battery pack, and the negative at the other end of the pack.It is also possible to connect batteries in what is called a series/parallel configuration This may sound confusing, but we will explain below. This is the way you can increase your voltage output and Amp/Hour rating. To do this successfully, you need at least 4 batteries.

If you have two sets of batteries already connected in parallel, you can join them together to form a series. In the diagram above, we have a bank that produces 12 volts and has 20 amp hours.

Don’t get lost now. Remember, electricity flows through a parallel connection just the same as it does in a single battery. It can’t tell the difference. Therefore, you can connect two parallel connections in a series as you would two batteries. Only one cable is needed; a bridge between a positive terminal from one parallel bank to a negative terminal from the other parallel bank.

It’s alright if a terminal has more than one cable connected to it. It’s necessary to successfully construct these kinds of battery banks.

In theory, you can connect as many batteries together as you want. But when you start to construct a tangled mess of batteries and cables, it can be very confusing, and confusion can be dangerous. Keep in mind the requirements for your application, and stick to them. Also, use batteries of the same capabilities. Avoid mixing and matching battery sizes wherever possible.

Quick Vocabulary Reference

AMP Hour is a unit of measure for a battery’s electrical storage capacity. The standard rating is an amp rating taken for 20 Hours.

Voltage represents the pressure of electricity. Some applications require more “pressure,” meaning higher voltage.

When you open a toy or any electric device you can see that often there is more than 1 battery.
Such batteries are standard ones and are connected together to give more power to the device.
If you know how to connect batteries in series and parallel configurations, you’ll be able to boost power and/or capacity without the added bulk.

What Is A Battery Pack?

A battery pack consists of two or more batteries that are connected with wires through their terminals. By connecting batteries to supply power for a single application, you can increase the voltage, amperage, or both.
Whenever you need more power or capacity, consider building a battery pack instead of installing multiple units. This would make your power supply more efficient and longer-lasting.
There are two ways to connect batteries to a power source: series and parallel.

How To Connect Batteries In Series

When you connect two batteries in series, you are able to double the voltage while maintaining the same electric intensity.
For example:

How do you connect batteries in a series configuration? Take a jumper wire and wrap it around the negative terminal of the first battery. Connect the other end to the positive terminal of the second battery. Take another set of wires and connect the open positive and negative terminals to your application.
Never cross the open positive and open negative terminals with each other as this would lead to a short circuit and cause damage or injury.
Always connect two batteries that have the same voltage and capacity rating. Mixing batteries can result in charging issues and reduced battery life.

How To Connect Batteries In Parallel

When you connect two batteries in parallel, you are able to double the capacity (amperage rating) while maintaining the same voltage.

How do you connect batteries in a parallel configuration? Take a jumper wire and wrap it around the positive terminal of the first battery. Connect the other end to the positive terminal of the second battery. Take another wire and connect the negative post of the first battery to the negative post of the second battery. Connect your positive and negative wires to one battery and run your application.

Always use heavy-duty wires when connecting batteries in parallel. The increase in amperage can heat up the cables really quick and lead to damage.

How To Connect Batteries In Series And Parallel

If you want to increase both voltage and amperage, you could connect multiple batteries in both series and parallel.
You will need at least four batteries to build this complex configuration. If you already have two sets of batteries connected in parallel, you can wire them together to form a series connection.
For example: let’s consider 2 sets of batteries 12-volt 150Ah wired in parallel and put them in series. This system will give you 24 volts and 300 amps.

How to connect batteries in series and parallel configurations? Take two batteries and connect them in parallel. Take another set of batteries and wire them together in parallel as well. Finally, take a jumper wire and bridge the positive terminal of one parallel connection to the negative terminal of the second parallel battery pair.
If you are connecting multiple battery pairs, be sure to stay safe and connect the wire ends to the appropriate terminals. It can get confusing once the cables become a tangled mess. Make a diagram of your project so you can keep track of your connections as you construct them.

If you have ever worked with batteries you have probably come across the terms series, parallel, and series-parallel, but what exactly do these terms mean?

Series, Series-Parallel, and Parallel is the act of connecting two batteries together, but why would you want to connect two or more batteries together in the first place?

By connecting two or more batteries in either series, series-parallel, or parallel, you can increase the voltage or amp-hour capacity, or even both; allowing for higher voltage applications or power hungry applications.

CONNECTING BATTERIES IN SERIES

Connecting a battery in series is when you connect two or more batteries together to increase the battery systems overall voltage, connecting batteries in series does not increase the capacity only the voltage.
For example if you connect four 12Volt 26Ah batteries you will have a battery voltage of 48Volts and battery capacity of 26Ah.

To configure batteries with a series connection each battery must have the same voltage and capacity rating, or you can potentially damage the batteries. For example you can connect two 6Volt 10Ah batteries together in series but you can not connect one 6V 10Ah battery with one 12V 10Ah battery.

To connect a group of batteries in series you connect the negative terminal of one battery to the positive terminal of another and so on until all batteries are connected, you would then connect a link/cable to the negative terminal of the first battery in your string of batteries to your application, then another cable to the positive terminal of the last battery in your string to your application.

When charging batteries in series, you need to use a charger that matches the battery system voltage. We recommend you charge each battery individually to avoid battery imbalance.

Sealed lead acid batteries have been the battery of choice for long string, high voltage battery systems for many years, although lithium batteries can be configured in series it requires attention to the BMS or PCM.

CONNECTING BATTERIES IN PARALLEL

Connecting a battery in parallel is when you connect two or more batteries together to increase the amp-hour capacity, with a parallel battery connection the capacity will increase, however the battery voltage will remain the same.

For example if you connect four 12V 100Ah batteries you would get a 12V 400Ah battery system.

When connecting batteries in parallel the negative terminal of one battery is connected to the negative terminal of the next and so on through the string of batteries, the same is done with positive terminals, ie positive terminal of one battery to the positive terminal of the next. For example if you needed a 12V 300Ah battery system you will need to connect three 12V 100Ah batteries together in parallel.

Parallel battery configuration helps increase the duration in which batteries can power equipment, but due to the increased amp-hour capacity they can take longer to charge than series connected batteries.

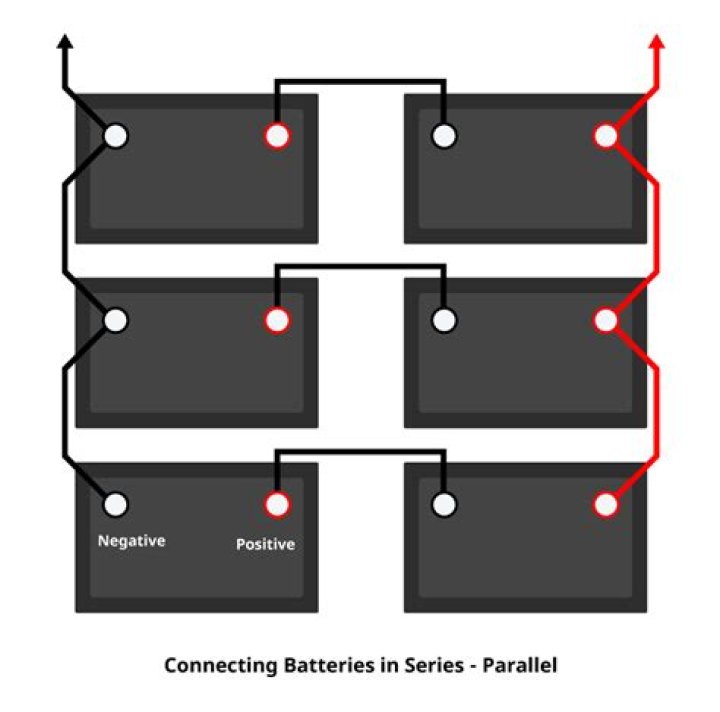

SERIES – PARALLEL CONNECTED BATTERIES

Last but not least! There is series-parallel connected batteries. Series-parallel connection is when you connect a string of batteries to increase both the voltage and capacity of the battery system.

For example you can connect six 6V 100Ah batteries together to give you a 24V 200Ah battery, this is achieved by configuring two strings of four batteries.

In this connection you will have two or more sets of batteries which will be configured in both series and parallel to increase the system capacity.

If you need any help with configuring batteries in series, parallel or series parallel please get in contact with one of our battery experts.

You may also be interested in…

What Are Cold Cranking Amps?

In order to understand where the term “Cranking Amps” comes from, it is important to understand the history behind traditional automobil…

The Smart Battery Lithium

In the world of batteries, there are batteries with monitoring circuitry and then there are batteries without. Lithium is considered a smart…

How To Charge Lithium Iron Phosphate (LiFePO4) Batteries

If you’ve recently purchased or are researching lithium iron phosphate batteries (referred to lithium or LiFePO4 in this blog), you know t…

The Power Sonic Brand Promise

Quality

Manufactured using the latest technology and stringent quality control, our battery products are designed to exceed in performance and reliability.

Experience

Our focused approach to exceptional end to end customer experience sets us apart from the competition. From enquiry to delivery and everything in-between we regularly exceed our customers’ expectations.

Service

Delivery on time, every time to customer specifications. We pride ourselves on offering tailored service solutions to meet our customers’ exact specifications.

Explore America’s Campgrounds

How to Wire Solar Panels to a Battery

How to Charge a Golf Cart With an Automotive Battery Charger

By connecting multiple deep cycle batteries, you can increase either the storage capacity or the voltage of any battery system. The most common connection is a parallel termination, in which the power is increased, but the voltage remains the same as each individual battery. In other words, a bank of parallel-connected 12-volt batteries will still provide 12 volts of power. A series connection, meanwhile, increases the voltage by each individually connected battery: four series-connected 12-volt batteries will provide 48 volts of power.

Items you will need

4 deep cycle 12-volt batteries, 500 amp-hour capacity

2 battery post connectors for each battery

2 battery cables, 18 inches minimum length for each connection

1/2-inch end wrench

7/16-inch end wrench

Lay the batteries next to each other, so that the long sides of the batteries are 1 or 2 inches apart. (Maintain this space between the plastic cases–the batteries will swell slightly during certain times of the year.)

Attach the battery post connectors to each top post on the deep cycle batteries. Use the 1/2-inch end wrench to tighten the clamp’s bolt. Do not over tighten the bolt, but make it tight enough so the clamp cannot move on the battery post.

Make a parallel connection of the deep cycle batteries by connecting all the positive terminals together. Begin at one battery. Insert one cable into the top post connector’s cable clamp. Tighten the cable clamp with the 7/16-inch end wrench. Run the cable to the next battery’s positive terminal. Make the same connection at this battery, and so on, until all the positive terminals are connected together.

Repeat Step 3 for the batteries’ negative terminals. The total voltage will remain the same as each battery’s individual voltage: 12 volts. The storage capacity, however, will be multiplied by the number of connected batteries. In this example, a bank of four parallel-connected 500 amp-hour batteries equals 2000 amp-hours.

Make a series connection using the same batteries. Assume that all of the battery connectors are already attached to the top posts, but no cables are connecting the batteries.

Run a cable from the positive terminal on one battery to the negative terminal on the battery next to it.

Tighten the cables in the battery connector. Perform the same connection from that last battery’s positive connector to the next battery’s negative connection. Keep making this cable connection until all of the batteries are connected together from the positive post to the next negative post. In this type of connection, the voltage of the four batteries will total 48 volts. The overall storage charge is equal to each individual battery’s capacity, or 500 amp-hours.

This is a popular historical Blog post created on one of our external Blogs in 2010, revisited and transferred to the store Blog for information and good practice reasons. The post became an important feature, which tried to address bad practices that became apparent, particularly within the mobile home and boating communities as requirements of additional electrical equipment increased, highlighting the common misunderstandings of battery connectivity.

One of the frequent questions to our help desk at Arc Components Limited is the question about batteries linked in series and parallel and the effect of voltage and amperage output. To help we created a simple guide to show the cause and effect of batteries joined together to form battery banks.

A popular misconception (especially in the houseboat community) is when joining batteries together in parallel that the existing cables are adequate and reused, they are also often used as a pattern for sourcing additional cables for the task of creating a battery bank. Whereas the truth of joining batteries together in parallel is that the Ampere Hour (Ah) of the batteries is increased, therefore new heavier-duty cable is required to avoid the cables potentially burning out.

Batteries Joined in Series

Batteries Joined in Parallel

Batteries Used in Series and Parallel Example 1

Batteries Used in Series and Parallel Example 2

A technician could ‘pull the guide up’ for technicalities such as variables in cable length etc. We created the guide as a simple presentation to show the by-product of fitting additional batteries without preparation or consultation.

This blog post was closed for comment 25th July 2017.

Series-Parallel Connection of Batteries to the PV Panel

This is another possible wiring connection of series parallel combination of batteries connected to the solar panels. As we may connect the solar panels as well as batteries in series, parallel and combo of series-parallel configuration. In today’s post, we will show the series-parallel connection of batteries to the solar panels, charge controller, DC and AC load points.

• Related Post: How to Wire Solar Panels in Series-Parallel Configuration?

Suppose, we have to connect a single or multiple solar panels to the 4 numbers of batteries each of 12V and 100Ah. The possible connection for this arrangement (series-parallel) is 24V DC system.

The main purpose of series-parallel connection of batteries is to double up the voltage level as well as storage power (charge capacity) for later use. This is because series connection only increases the level of voltage (while current remains same) and parallel connection increases the amperes (while voltage level remains same). So we get the advantages of both connections i.e. increase both the level of voltage as well as amperage capacity.

• How to Wire Batteries in Series to a Solar Panel and UPS?
• How to Wire Batteries in Parallel to a Solar Panel and UPS?

Voltage & Current in Series-Parallel Connected Batteries

Suppose we have 12V, 100Ah batteries connected in series-parallel connection.

A set of two batteries connected in series

12V + 12V = 24V. ….. (Voltage is additive in series connection)

100Ah = 100Ah = 100Ah ….. (Current is same in series connection).

Now, we have two sets of series connected batteries. If we connected these two set in parallel:

24V = 24V = 24V ….. (Voltage is same in parallel connection)

100Ah + 100Ah = 200Ah ….. (Current is additive in parallel connection).

Overall, we got 24V, 200Ah from four batteries each of 12V and 100Ah i.e. we doubled both the current and voltage capacity of batteries e.g voltage from 12V to 24V and battery ampere hour rating from 100Ah to 200Ah.

• How to Design and Install a Solar PV System? With Solved Example
• A Complete Note on Solar Panel Installation with Calculation & Examples

To do this wiring, connect the first two batteries separately in series and do the same for the remaining two batteries. This way, we will have two sets of series connected batteries. Now connect these two sets of series connected batteries in parallel connection as shown in the following fig. Now, we are having four 12V, 100Ah batteries connected in series-parallel configuration.

You may proceed to connect these batteries to the UPS/inverter (which is farther connected to the AC load) to power up the AC load (120V/230V AC). In addition, connect the same battery configuration to the solar charge controller which is farther connected to the PV panel.

The following solar panel and battery wiring diagram shows how to wire a 24V Solar Panel to four 100Ah, 12V batteries in series-parallel configuration with an automatic inverter system.

The solar panel(s) will charge the battery as well as power up the AC load during the day (normal shun shin). The stored power in the batteries can be used to power up the AC load during night (or shading) when no power is available from the photovoltaic panel. The whole process is automatic due to auto UPS wiring i.e. no need to install an auto or manual changeover / ATS switch.

• How to Wire Solar Panel to 120-230V AC Load and Inverter?
• How to Wire Solar Panel to 12V DC Load and Battery?

• Current is the same while voltage is additive in series connection.
• Current is additive while voltage is the same in parallel connection.
• Only same rated batteries can be connected in series, parallel or series parallel connection.
• A 12V battery can only be connected (series, parallel or series-parallel) with another 12V battery.
• A 12V battery should not be connected (in series, parallel or series parallel) to a 6V or 24V battery.

Related Solar Panel Wiring & Installation Diagrams:

What is a bank of batteries? No, battery banks are not some kind of financial battery establishments. A battery bank is the result of joining two or more batteries together for a single application. What does this accomplish? Well, by connecting batteries, you can increase the voltage, amperage, or both. When you need more power, instead of getting yourself a massive super tanker of an RV battery. For example, you can construct a battery bank using a high-amp AGM Battery for a RV, camper, or trailer.

The first thing you need to know is that there are two primary ways to successfully connect two or more batteries: The first is via a series and the second is called parallel. Let’s start with the series method as we compare series vs parallel.

How to wire batteries in series: Connecting batteries in series adds the voltage of the two batteries, but it keeps the same amperage rating (also known as Amp Hours). For example, these two 6-volt batteries joined in series now produce 12 volts, but they still have a total capacity of 10 amps.

To connect batteries in a series, use jumper wire to connect the negative terminal of the first battery to the positive terminal of the second battery. Use another set of cables to connect the open positive and negative terminals to your application.

When connecting batteries: Never cross the remaining open positive and open negative terminals with each other, as this will short circuit the batteries and cause damage or injury.

Be sure the batteries you’re connecting have the same voltage and capacity rating. Otherwise, you may end up with charging problems, and shortened battery life.

How to wire batteries in parallel: The other type of connection is parallel. Parallel connections will increase your current rating, but the voltage will stay the same. In the “Parallel” diagram, we’re back to 6 volts, but the amps increase to 20 AH. It’s important to note that because the amperage of the batteries increased, you may need a heavier-duty cable to keep the cables from burning out.

To join batteries in parallel, use a jumper wire to connect both the positive terminals, and another jumper wire to connect both the negative terminals of both batteries to each other. Negative to negative and positive to positive. You CAN connect your load to ONE of the batteries, and it will drain both equally. However, the preferred method for keeping the batteries equalized is to connect to the positive at one end of the battery pack, and the negative at the other end of the pack.

It is also possible to connect batteries in series and parallel configuration. This may sound confusing, but we will explain below. This is the way you can increase your voltage output and Amp/Hour rating. To do this successfully, you need at least 4 batteries.

If you have two sets of batteries already connected in parallel, you can join them together to form a series. In the diagram above, we have a battery bank that produces 12 volts and has 20 amp hours.

Don’t get lost now. Remember, electricity flows through a parallel connection just the same as it does in a single battery. It can’t tell the difference. Therefore, you can connect two parallel connections in a series as you would two batteries. Only one cable is needed; a bridge between a positive terminal from one parallel bank to a negative terminal from the other parallel bank.

It’s alright if a terminal has more than one cable connected to it. It’s necessary to successfully construct these kinds of battery banks.

In theory, you can connect as many batteries together as you want. But when you start to construct a tangled mess of batteries and cables, it can be very confusing, and confusion can be dangerous. Keep in mind the requirements for your application, and stick to them. Also, use batteries of the same capabilities. Avoid mixing and matching battery sizes wherever possible.

Always remember to be safe, and keep track of your connections. If it helps, make a diagram of your battery banks before attempting to construct them. Good luck!

Quick Vocabulary Reference:

AMP Hour is a unit of measure for a battery’s electrical storage capacity. The standard rating is an amp rating taken for 20 Hours.

Voltage represents the pressure of electricity. Some applications require more “pressure,” meaning higher voltage.

SAVE 10% ON YOUR ORDER – USE CODE ‘FB10’ AT THE CHECKOUT!

How to connect your batteries to make up a 24V or 48V system

For larger systems with more than a couple of panels there are some advantages in running at a higher voltage:

• DC cable losses are reduced
• At higher voltage many charge controllers can run more panels

Most batteries are rated at 2V, 6V or 12V so you will need to connect them in series in order to reach the voltage you require.

Connecting batteries in series means connecting the (+) terminal of the first battery to the (-) terminal of the next battery. Each battery you connect in series increases the voltage of the battery bank.

Here are a few examples:

Two 12V batteries connected in series, the total voltage is 24V

Four 12V batteries connected in series, the total voltage is 48V

Four 6V batteries connected in series, the total voltage is 24V

What voltage should I run my system?

The voltage of your panel must be higher than the voltage of your battery bank. This is because most charge controllers are only able to step down the voltage from the panels to match the battery, and they can’t step it up.

• Small panels (100W, 150W) are usually rated at 12V or 18V so in this case you would require a 12V battery bank.
• Larger panels are often rated 24V or 30V (such as the 250W Ulica) and in this case you will do better with a 24V battery bank.
• If you are installing several panels you can connect them in a string in order to achieve a higher voltage. Larger systems are best designed to run at 24V or 48V.

Advanced setup: connecting batteries in series and parallel

Suppose you have four 12V batteries but you want to put together a 24V battery bank. You could connect a pair of batteries in series, and then another pair of batteries in parallel.
