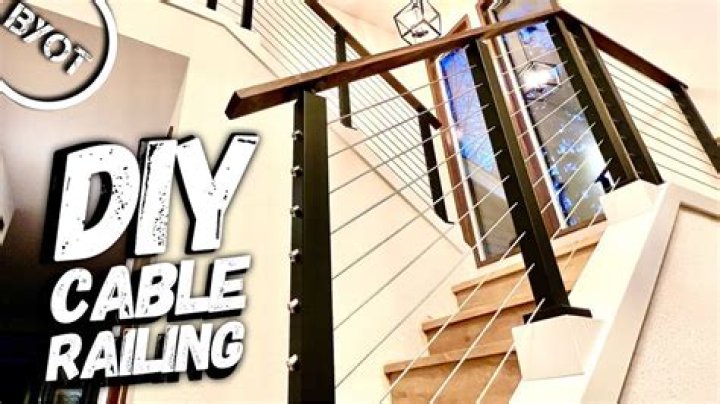

How to install cable railing

Many homeowners are wanting to install a cable railing system to their deck, balcony or staircase these days. The look is very popular.

Here at StairSupplies we’re your source for all things related to stairs. That’s why we’ve written this blog to help you learn how to install a cable railing system for yourself.

Installation of a cable railing system is not too complicated provided you have high quality tools and components. Check out the following steps and let us know what questions you have.

1) Acquire the appropriate tools. You will need to source the following tools:

• Cable Crimper
• Cable Cutter
• Cable Rail Insert Tool
• Guide Pin
• Allen Wrenches
• Long T-30 Screw Bit
• Insert Sleeve Driver
• String
• Modified slip joint pliers
• Drill
• ¼” drill bit

We’ve already put together a rental tool kit for cable rail installation.

2) Mount and Drill the Rail Posts

The method utilized to mount the rail posts will depend on what type of post you are using. You can save some time by using prefabricated posts that we supply.

If pre-existing posts are used, create a template to drill evenly spaced holes in the posts. If our 5/32” stainless steel cable is utilized [recommended due to superior strength and corrosion resistance], we recommend using a ¼” hole as shown in this video:

Once the template is made, use the cordless drill and ¼” bit to drill holes in the posts.

3) Ensure That the Cable Will Be Level

After all of the holes have been drilled in the posts, it is a good idea to ensure that the cables will be parallel and level with respect to each other. To do this, thread string through all of the holes and adjust the tension until the string is taught. Take a step back and give your work a once over. If satisfied, continue to the next step.

4) Determine the Length of Cable You Need

Determining the length of cable you requires a bit of math. You’ll need to determine the perimeter of the area you are putting cable railing on first, then multiple that by the number of rungs or strands you would like:

Total Required Cable = Perimeter X Number of Desired Strands

If you are measuring cable for a flight of stairs, then things get a little more tricky. The simplest way to get the length correct is to use a formula known as Pythagorean’s Theorem [also known the 3-4-5 rule by many carpenters]. The first step is to measure the base of the stairs and how tall that flight is. The length of diagonal cable you require will be the square root of the sum of the base of the stairs squared and the height of the stairs squared.

Total Required Cable = SQRT([Stair Height]^2+[Stair Width]^2) X Number of Desired Strands.

Don’t worry, if the math is too tedious, you can find a Pythagorean Theorem solver here:

5) Cut and Terminate the Cable

The easiest part of the process is to cut and terminate the cable. Using the cable cutter,cut the cable as evenly as possible. Then using the cable rail insert tool, insert the cable through the DriveTite, then crimp it. We recommend the DriveTite line of terminators for any cable railing.

6) Adjust Cable Tension and Seal Cable

Using the T30 bit, adjust the cable to a tension that you find adequate. The cable should be taught—not loose enough to sag. For more information, see our video over at DriveTite Fasteners.

We highly recommend using a marine grade sealer on the cable to protect it from corrosion. We specifically recommend Marine 31 Polish + Sealer.

To seal the cable, simply apply the polish to a rag and give the cable a good wipe down. This is recommended to ensure that your new cable railing system has the longest service life possible.

What do you think of these instructions? Ready to install a cable railing system for yourself? Got questions about the materials needed for your staircase? Contact us today.

One of our newer popular product lines in cable railing, you can check this post: Cable Railing Systems for an overview of our wire cable rail products and also information on how to order.

We installed some cable railings in our warehouse to create a safe storage area above our safe room:

A few things to note when installing cable railing:

• Before beginning, research the local building code requirements for railings, decks, etc.
• The first step in configuring your design is determining the location of the end and intermediate posts. This is required first before you can determine cable lengths, number of cables and assemblies, and any hardware necessary. Generally, it’s best to install the posts prior to determining cable measurements.
• Our cable assemblies are designed to go horizontally from the fixed end, through intermediate posts, and then tensioned or secured at secure end posts.
• Using a turnbuckle is highly recommended, as it allows you to re-tension the cable if it ever starts to sag. It’s not necessary structurally to use a turnbuckle for 28′ or less cable , but including one can also increase the cable span allowance to up to 50′.
• When accommodating corners, we recommend you terminate the cable and start a new run. While contractors may use a continuous run around a corner, it can impact the allowable cable span. If it’s necessary to run cable around a corner, the max. angle is typically 45° for 1×19 cable. This will preserve the cable’s integrity of the cable, and can be achieved by using a two post corner.

For more information on our stainless steel cable railing systems, see our Cable Railing Systems to download a product catalog and guide. Products can be ordered by calling our sales specialists at 888-794-0584. They will also be happy to answer any questions you may have.

Cable railing adds style and aesthetics to your home or building.It’s an affordable solution. Get started with these tips to install cable railing yourself.

Cable railings have grown in popularity over the past few years and are advantageous for many reasons. For one, they are beautiful and add a great deal of style and aesthetics to a house. Secondly, cable railings are often less costly than many other types of railings, with materials being less per linear foot on average, according to Home Advisor.

Even better, you can install cable railings on your own. Although professional installation is recommended, you don’t need any special skills to execute the perfect DIY. Assuming that you’ve decided to invest in the railings, the following is a step-by-step DIY guide to install cable railing.

How to install cable railing

1. Select the right cable railing system

There are many different types of cable railings systems. The majority use stainless steel cables and others use glass in place of the traditional spindle approach. It’s important to review your options to make the best selection for your needs.

One thing you will want to research when making a selection is your local building codes. Before you begin the project, check your municipal codes to verify that you are meeting all safety regulations.

2. Design and build the railing frame

Depending on the railing system you chose in step #1 above, cable railings can have wooden, composite, stainless steel or aluminum frames.

Wooden frames are the most common. When building the frame, use 4×4-inch posts or larger to prevent bending in case the railing is put under pressure. You’ll need a top rail and (optionally) a bottom rail to distribute the force away from the bottom of the post. Reinforcing support in the form of a 2×4 running under the top rail is recommended.

Ensure that the end posts are securely mounted. In between the wooden end (or corner) posts, you’ll need intermediate posts, placed no more than 42 inches apart. Most people prefer to use ¾ x ¾ inch aluminum cable braces or ¼ x 1-inch stainless braces as intermediates.

3. Install the cable wires

Though some frame systems such as the press and latch are designed to let you hook the cable to the frame with ease, most cable wires run through the posts, especially when wooden posts are used. Therefore, you’ll need a couple of tools to accomplish this step, including a pair of cable cutters, pliers, a wrench, and a drill.

Start by determining the number of cable rows needed, keeping in mind that most building codes require that the cables are spaced no more than 3.5 inches apart. Typically, a 4-inch ball should not pass between two lines of cables.

Once you’ve determined the number of rows required, mark the spots where cable holes are to be drilled. Then, start drilling. You’re required to drill the holes all through the post. When done, run the cables through the holes, using cable sleeves to protect the wood.

4. Tighten, trim, and finish up

The last step is to tighten, trim, and cap the cables. Tightening starts from the middle cable and moves outward, alternating between the cable line above and the one below until you’re done.

When it comes to trimming, most cable railing packages come with pre-assembled kits to make the process a breeze. You’ll likely find a push and lock or pull and lock fitting that allows for easy trimming. Push or pull the fitting and lock it as appropriate. Then, trim the ends using cable cutters and cap them with the supplied caps.

Learn More from the Pros

The above guide is only a simplified version of the installation process. We have more detailed installation guides on our website, for all of our cable railing variations. There are many ways you can play around with cable railing for maximum performance and appeal. Contact the experts at Atlantis Rail today to learn more.

Installing cable railings is relatively easy for anyone with decent carpentry skills. To help, we have provided this step by step guide. When compared to installing other railings that are available, Keuka Studio’s railings are typically much easier to install and we have a variety of railing styles to choose from. This is because instead of forcing you to use standard products, we design the railing around your unique project. This is especially important if you have a complex deck with multiple angles, levels or stairs. The result is railing that flows naturally around the entire project. If you have any questions we are here to help, just contact us at 585-487-6148

A step by step guide is provided here including what tools you will need, how to set the posts, what posts to set first, and how to install the top rail.

Tools Required

• Drill
• Drill Bits
• Level
• Measuring Tape

• Pencil
• Masonry String
• Socket Set
• Keuka Cable Installation Kit

STEP 1 – Familiarize Yourself with the Drawings

We provide a complete set of drawing with every custom project. Each component will be labeled. Posts are labeled with numbers 1,2,3, etc. Cable assemblies are labeled with letters A,B,C etc.

In these drawings, you will also find specific locating dimensions for any posts that have a critical location. Stair posts for example. Please look for these dimensions before placing any posts. Once you have familiarized yourself with the project drawings you are ready to install the cable railings.

STEP 2 – Set the Corner and End Posts

Using the Lag Bolts provided, bolt-on all corner and end posts. Set the height of the post so that it achieves the required height (36″ or 42″ depending on model). For any post located adjacent to a wall, ensure that there is not more than a 4″ space between the post and the wall. Level top and sides of all posts, shim if necessary. Note: For top-mounted posts, the spacing and installation are similar to fascia mount however, you do not need to adjust for height.

STEP 3 – Set the Intermediate Posts

To determine the location of the intermediate posts (A), measure the distance between end and corners and divide this measurement equally to match the number of posts on the drawings. The posts should be spaced 42 inches to 48 inches maximum (60 inches if using cable spacers).

Use a masons string line to ensure the tops of the posts are all in line, vertically.

STEP 4 – Install Top Rail

Wood Top Rails

For wood top rails, cut and miter each piece of wood and attach with supplied wood screws from the underside of railing post top plate.

Note: In instances where a customer is supplying his/her own wood cap, be sure to use a strong, knot-free exterior grade wood like IPE, Garapa or Tigerwood. Soft-woods like cedar or redwood may require a thicker cross-section to avoid bowing.

Aluminum Top Rails

Aluminum top rails can be cut and mitered with a miter saw (using a metal cutting blade). Top rail can be fastened using the included self-tapping screws (pre-drill first). Additionally, for long runs, ends and corners, splice plates are included to rigidly join these sections.

How to install splice plates

Stainless Steel or Steel Top Rails

For solid metal top-rails such as these, a special assembly method must be employed. For this type of railing construction, a surface mounted base is required. The top rail will arrive with tapped holes already in the bottom side of the top rail. Please do not follow the instructions for other types of railings for this style. Each linear section of railing posts must be assembled to the top rail prior to affixing it to the deck. Please consult with our experts prior to starting this type of project.

STEP 5 – Install Cables and Fittings

Once you have the posts and top rail completely installed the railing is ready for the cables and fittings to be installed. Our fittings are easy to install and easy to adjust. For more information on installing our cables and fittings click here

Sturdy cable deck railing on solid wood posts lends a rugged look to your deck and helps maintain a clear view of the surrounding landscape. Designs with slim metal posts add contemporary elegance to your modern house. Follow these directions to install your cable deck railing accurately to ensure its stability, safety, and beauty.

Step 1 – Check Building Code Guidelines for Your Municipality

Be aware that in many municipalities, cable deck railings are not permitted to be constructed as they provide footholds that make it possible to climb up and over the top support of the railing. Consult your municipal building codes to ensure that your cable deck railings will conform to safety guidelines. Rather than not install them at all, you may be able to reinforce one or both sides of the cable deck railing with tempered glass.

Step 2 – Measure the Total Length of the Cable Railing Sections

Measure the total length of the cable railing sections. Keep the distance between them to a maximum 24 inches, to be supported by a post made of wood, metals with a powdered paint coating, tubular stainless steel, or vinyl-coated aluminum.

Step 3 – Measure the Height of Your Railing and Install Support Posts

Railings should be between 25 and 46 inches in height, including a top handrail if desired, measured from the deck surface. Drill holes through the deck to attach support posts with the long bolts. Secure them below the deck with nuts.

Step 4 – Measure the Spacing for Cables

Plan for five horizontal cables 3½ inches from the top and bottom of a 25-inch high railing, 6 cables for a railing 36 inches high and 7 cables for deck railings up to 46 inches in height. Mark the cable placement as the center of a circle formed by the

Step 5 – Attach the Cable Spindles

These trumpet-shaped metal fixtures hold the cable in place at both ends. They measure about 4 inches long, and each holds at least 1 inch of cable. Attach the base to the post with a Phillips head screw, and twist on the spike to the outside edge of the base.

Step 6 – Insert the Cables

Push 1 inch of cable into each spindle. Use the adjustable wrench and wire crimper to compress the end of the spindle around the wire, and then hold and turn the spindle with the adjustable wrench at each end to pull the wire taut. Check each strand of wire cable is level before inserting the next.

Step 7 – Attach Top Hand Rail

Attach a 4-inch wide top handrail of the same material as the support posts, or accent any cable deck railing with a cedar or redwood handrail.

Below are links to detailed instruction manuals for all Stainless Cable & Railing component systems. Click on the appropriate frame materials and fittings assemblies to view their installation instructions.

How to Install Cable Railing Systems:

How to Install Thru-Post Cable Railing Fittings:

How to Install To-Post Cable Railing Fittings:

Cable Railing Hole Drilling, Swaging, and Grommet Instructions:
